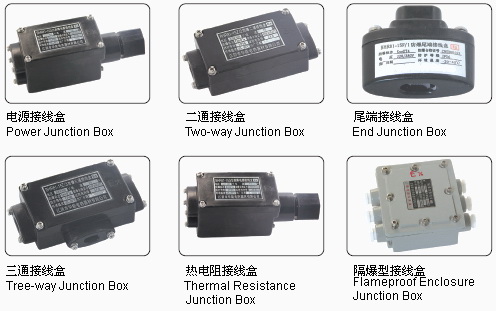

防爆接线盒
|
| 1.产品简介 |
| Brief Introduction of Product |
|
|
Incremental safety explosion proof junction box complies with the requirements specified in G83836.3-2000.This is applied in Zone 2, Grade II, for parallel connection cable purpose. |
|
Flameproof enclosure junction box complies with the requirements specified in G83836.3-2000. This is applied in Zone 1,2, Grade II, for series connection cable purpose. |
2.产品技术参数
Product Technical Parameters
|
名称 项目 |
电源接线盒 |
二通接线盒 |
三通接线盒 |
终端接线盒 |
热电阻接线盒 |
||||
|
型号 |
BHR81A-15D/3 |
BHR81A-15Z/2 |
BHR81a-15Z/3 |
BHR81A-15F/1 |
BHR81-15R/3 |
BHR85-60 |
|||
|
额定电压 |
220v/380v |
220v~660v |
|||||||
|
额定电流 |
15A |
60A |
|||||||
|
绝缘电阻 |
≥50mω |
≥50mω |
|||||||
|
防护等级 |
ip56 |
ip56 |
|||||||
|
外形尺寸 |
178×60×57 |
135×60×35 |
135×77×35 |
45×20×51 |
178×60×57 |
230×190×120 |
|||
|
防爆标志 |
exeⅱbt4 |
exdⅱbt3 |
|||||||
|
用途 |
电源电缆与并联带的连接 |
两根并联带之间的连接 |
三根并联带之间的连接 |
并联带的尾端密封 |
热电阻与控制电缆连接 |
串联带与电缆、串联带连接和尾端密封 |
|||
3.并联带用防爆接线盒安装示意图
Installing Sketch of Explosion proof Junction Box for Paralles connection cable
4.产品安装注意事项
Points to Be Noticed for Product Installation
(1)发现接线盒外壳有变形、裂痕和损坏、应停止使用。
Where there is distortion,crack or damage on the junction box,it must be stopped using.
(2)安装时应防止电热丝和外编织铜丝及芯线之间的短路。
When installing,avoid any short circuits between electric heating wires, braided copper wires and core wires.
(3)应按电热带的型号选用所附适当的密封圈。
Choose proper sealing rings according to the types of electric heating cables
防爆接线盒 ：
BHR87-11A；BHR87-12A；BHR87-13A；BHR87-33A；BHR87-30A；≤40A 220V、380V Ex eb IIC T4 Gb Ex tb IIIC T130℃ Db
BHR87-11B；BHR87-12B；BHR87-13B；BHR87-33B； BHR87-30B ≤65A 220V、380V Ex eb IIC T4 Gb Ex tb IIIC T130℃ Db
集肤尾端接线盒 BHR86-F/1；15～180A 220～6000V Ex db IIC T4 Gb Ex tb IIIC T130℃ Db
集肤电源接线盒BHR86-D/1；15～180A 220～6000 Ex db IIC T4 Gb Ex tb IIIC T130℃ Db
防爆电源接线盒 BHR81A-15D/3（2）
防爆热电阻接线盒 BHR81A-15R/3
防爆二通接线盒 BHR81A-15Z/2
防爆三通接线盒 BHR81A-15Z/3
防爆尾端接线盒 BHR81A-15F/1
【220V、380V、660V 15 Ex eb IIC T4 Gb Ex tb IIIC T130℃ Db】
◆接线盒DH、ZH、TH 220VAC/380VAC 16A Ex eb ⅡC T4 Gb IP54
尾端盒Ex eb ⅡC Gb IP54
◆防爆尾端接线盒FZH； 防爆标志：Ex eb ⅡC Gb；Ex tb ⅢC Db； 外壳防护等级：IP66
防爆二通接线盒FIH-00、防爆三通接线盒FTH-00、防爆电源盒FDH-1-00（小型尺寸）、FDH-00 AC380V/220V、额定电流：40A Ex eb IIC T4 Gb ；Ex tb IIIC T80℃ Db IP66
防爆电源接线盒 DKJXH81A-40D/3 40A
防爆二通接线盒DKJXH81A-40Z/2 40A
防爆三通接线盒DKJXH81A-40Z/3 40A
防爆尾端接线盒DKJXH81A-40F/1 40A
以上220V、380V、660V Ex eb IIC T4 Gb IP65
防爆接线盒DK-JXH-100/1140 100A 1140V
爆冷端连接器DKLDLJQ-1-2
1表示额定电流：≤180
2表示额定电压：220、380、660、1140
≤180A 220V、380V、660V、1140V Ex eb IIC T4 Gb
PS◆ZDH-2 防爆电源接线盒、ZJH-2 防爆二通接线盒ZTH-1 防爆T形接线盒、ZWH-1 防爆尾端接线盒电压：220V、380V、660V 电流：40A防爆标志：Ex eb IIC T4 Gb
HR◆BHD电伴热防爆电源接线盒BHI电伴热防爆两通接线盒BHT电伴热防爆三通接线盒
BHZ电伴热防爆尾端接线盒 电压220/380V 电流40A Exeb IIC T4 Gb IP66
防爆电源接线盒BHD-II-F2防爆二通接线盒BHI-F增安型防爆三通接线盒BHT-F增安型防爆尾端接线盒BHZ-F 电压:220V/380V电流40A Exeb IICT6 Gb Ex tb IIC T80°CDb IP66
AHAB◆防爆电源接线盒，FDH 220/380/660V AC 40A防爆终端接线盒，FZH 220/380/660V AC 40A防爆直型接线盒，FTH 220/380/660V AC 40A防爆标志：Ex eb IIC T6 Gb防爆二通接线盒，FJH 660V AC 40A 防爆标志：Ex eb IIC T4 Gb
JSSTE◆FDH 防爆电源接线盒 FJH防爆二通接线盒FTH防爆三通接线盒FZH防爆尾端接线盒电流40A电压220V、380V、660V Ex eb IIC T4 Gb FDXH-2 FDH-2电源接线盒 FJH-2 二通接线盒FTH-2 三通接线盒FZH-2尾端接线盒
